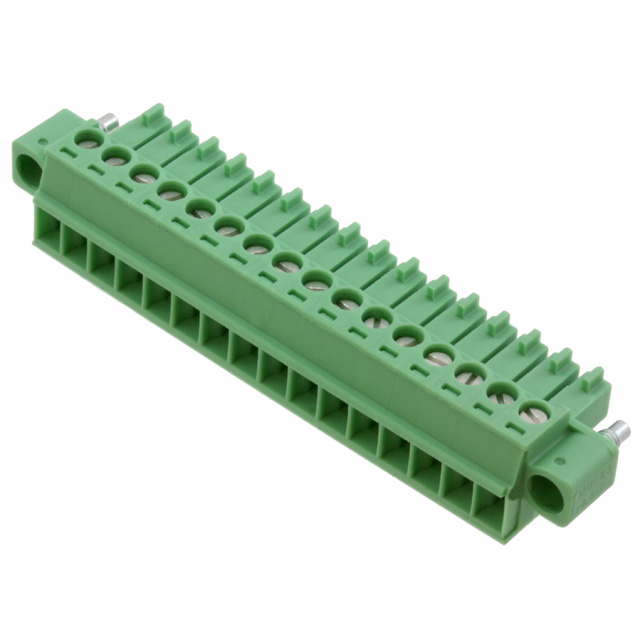

Phoenix Contact
| Part Number | 1767775 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 16POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5656 pcs | Data sheet | 1.1767775.pdf2.1767775.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Gauge or Range - AWG | - | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON MC |
| Screw Size | M2 | Positions Per Level | 16 |
| Plug Wire Entry | 180° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 1767775-ND 277-13960 MC 1 5/16-STFZ13-3 81 |
| Operating Temperature | - | Number of Positions | 16 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 16 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
