Phoenix Contact

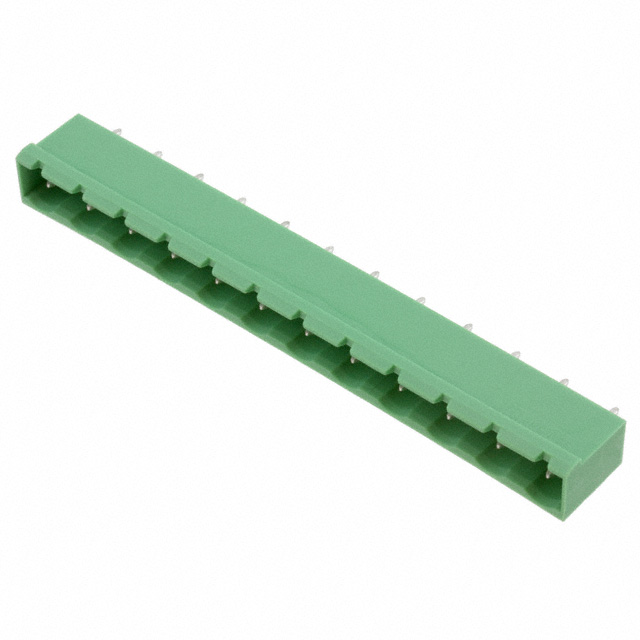

| Part Number | 1766767 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS VERT 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14189 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 630V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON GMSTBVA | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | - |
| Pitch | 0.295" (7.50mm) | Packaging | Bulk |
| Other Names | 1766767-ND 277-8696 GMSTBVA2,5/12-G GMSTBVA2512G |
Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | 12A | Contact Tail Length | 0.154" (3.90mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
