Phoenix Contact

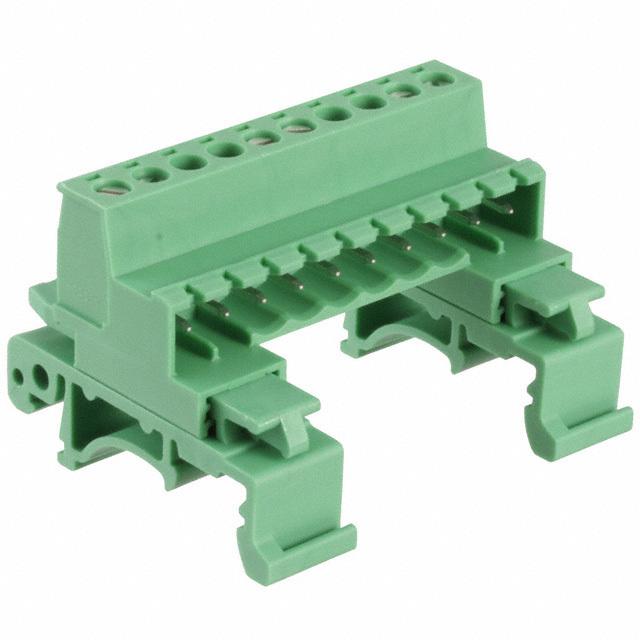

| Part Number | 1765768 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 10POS 29.1MM GREEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4730 pcs | Data sheet | 1765768.pdf |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 300V |
| Type | Plug Connection - Ganged | Termination Style | Plug Receptacles, Screw |
| Terminal - Width | 29.1mm | Stripping Length | 7mm |
| Series | COMBICON UMSTBHK | Other Names | 1765768-ND 277-5754 UMSTBHK2,5/10-G |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 4 Weeks | Length | 2.059" (52.30mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Green |
| Height (Max) | 1.496" (38.00mm) | Features | - |
| Detailed Description | 10 Position Terminal Block Green Plug Connection - Ganged 29.1mm | Current - UL | 10A |
| Current - IEC | 12A |
