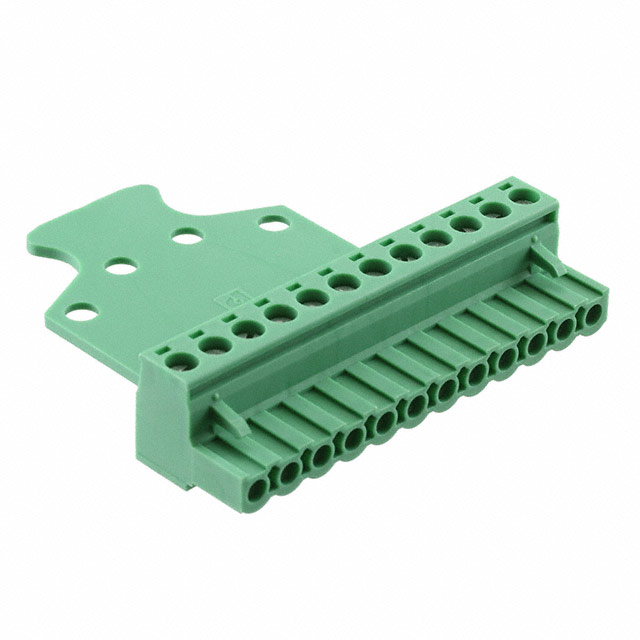

1764280 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1764280
Manufacturer/Brand: Phoenix Contact
Product description TERM BLOCK PLUG 12POS STR 5.08MM
Datasheets: 1.1764280.pdf2.1764280.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5473 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5473 pcs
Reference Price (In US Dollars)
1 pcs
$6.253
10 pcs
$6.084
50 pcs
$5.686
100 pcs
$5.231
250 pcs
$4.833
500 pcs
$4.606
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$6.253

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1764280

Part Number 1764280 Manufacturer Phoenix Contact
Description TERM BLOCK PLUG 12POS STR 5.08MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5473 pcs Data sheet 1.1764280.pdf2.1764280.pdf
Wire Strip Length 7mm Wire Gauge or Range - mm² 0.2-2.5mm²
Wire Gauge or Range - AWG 12-30 AWG Voltage - UL 300V
Voltage - IEC 630V Type Plug, Female Sockets
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In) Termination Style Screw - Clamping Yoke (Tension Sleeve)
Series COMBICON MSTB Screw Size M3
Positions Per Level 12 Plug Wire Entry 180°
Pitch 0.200" (5.08mm) Packaging Bulk
Other Names 1764280-ND
277-13951
MSTB 2,5/12-STZ-5,08
MSTB2,5/12-STZ-5,08
Operating Temperature -
Number of Positions 12 Number of Levels 1
Mounting Type Free Hanging (In-Line) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Manufacturer Standard Lead Time 2 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Height -
Ingress Protection - Housing Material Polyamide (PA), Nylon
Header Orientation - Features Retention Latches (Non-Wire Side), Strain Relief
Detailed Description 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) Current - UL 10A
Current - IEC 12A Contact Tail Length -
Contact Mating Finish Tin Contact Material -
Color Green
