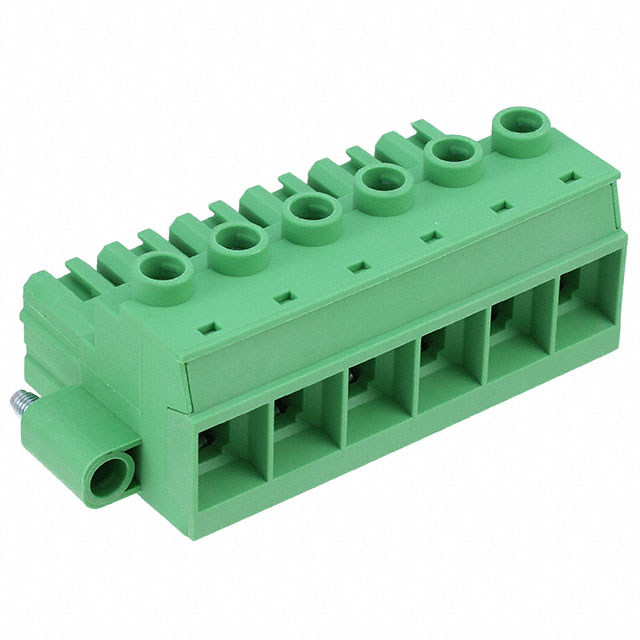

Phoenix Contact
| Part Number | 1762631 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 15MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1613 pcs | Data sheet | 1.1762631.pdf2.1762631.pdf |
| Wire Strip Length | 20mm | Wire Gauge or Range - mm² | 0.5-35mm² |
| Wire Gauge or Range - AWG | 2-16 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Blade Sockets |
| Torque - Screw | 2.5-4.5 Nm (22.1-39.8 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON PC | Screw Size | M5 |
| Positions Per Level | 6 | Plug Wire Entry | 180° |
| Pitch | 0.591" (15.00mm) | Packaging | Bulk |
| Other Names | 1762631-ND 277-11509 PC 35 HC/ 6-STF-15,00 PC35HC/6-STF-15,00 |
Operating Temperature | - |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.575" (40.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 6 Position Terminal Block Plug, Blade Sockets 0.591" (15.00mm) 180° Free Hanging (In-Line) | Current - UL | 115A |
| Current - IEC | 125A | Contact Tail Length | - |
| Contact Mating Finish | Silver | Contact Material | - |
| Color | Green |
