Phoenix Contact
| Part Number | 1752030 | Manufacturer | Phoenix Contact |
|---|---|---|---|

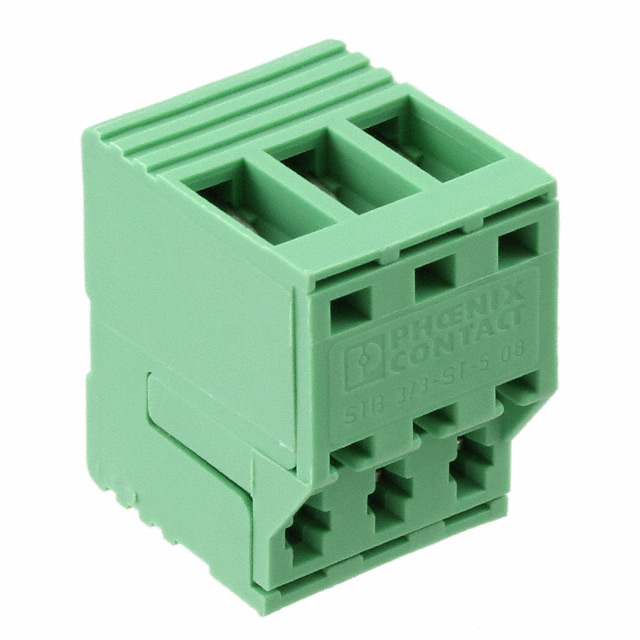

| Description | TERM BLOCK PLUG 3POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10821 pcs | Data sheet | 1.1752030.pdf2.1752030.pdf |
| Wire Strip Length | 8mm | Wire Gauge or Range - mm² | 0.2-4mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Plug |
| Torque - Screw | - | Termination Style | Screw |
| Series | COMBICON STB | Screw Size | M3 |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1752030-ND 277-13907 Q3088542 STB3/3-ST-5,08 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | - |
| Header Orientation | - | Features | - |
| Detailed Description | 3 Position Terminal Block Plug 0.200" (5.08mm) | Current - UL | 10A |
| Current - IEC | 16A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
