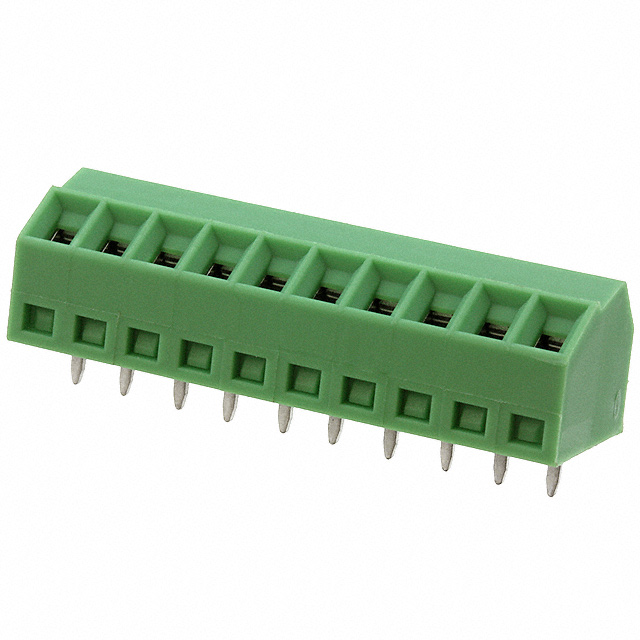

Phoenix Contact
| Part Number | 1751170 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLOCK 10POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13192 pcs | Data sheet | 1751170.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 16-30 AWG |
| Voltage | 300V | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Series | COMBICON SMKDS | Screw Thread | M2 |
| Screw Material - Plating | - | Positions Per Level | 10 |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1751170-ND 277-6142 SMKDS 1/10-3,5 SMKDS1/10-3,5 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 55° (125°) Angle with Board |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | - |
| Detailed Description | 10 Position Wire to Board Terminal Block 55° (125°) Angle with Board 0.138" (3.50mm) Through Hole | Current | 10A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
