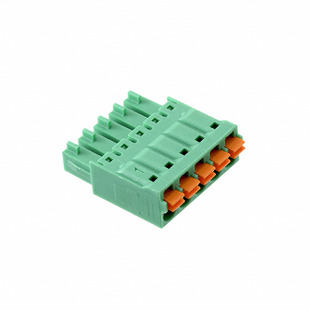

Phoenix Contact
| Part Number | 1745920 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 5POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18017 pcs | Data sheet | 1745920.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-24 AWG | Voltage - UL | 150V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Push-In Spring |
| Series | COMBICON FMC | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | 180° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1745920-ND 277-12328 FMC 1,5/ 5-ST-3,81 FMC1,5/5-ST-3,81 |
Operating Temperature | - |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.307" (7.80mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
