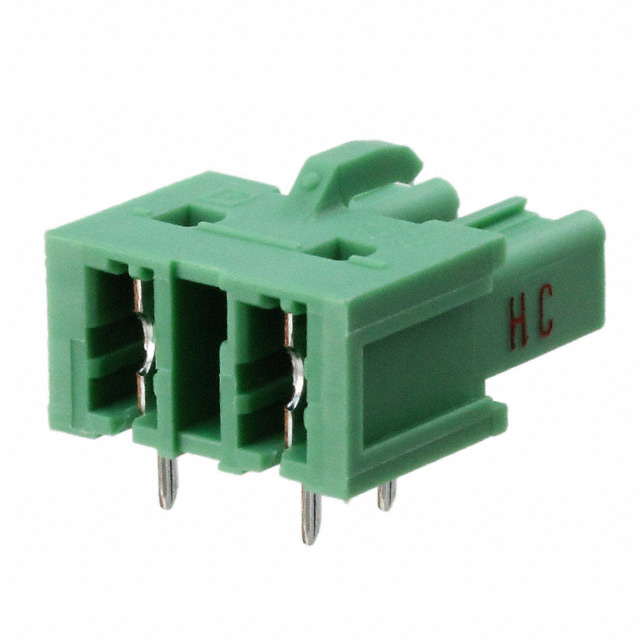

Phoenix Contact
| Part Number | 1745784 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38261 pcs | Data sheet | 1745784.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 1kV | Type | Header, Female Sockets |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON GIC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1745784-ND 277-13869 GIC2,5HC/2-G-7,62 GIC25HC2G762 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.402" (10.20mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | Retention Latches |
| Detailed Description | 2 Position Terminal Block Header, Female Sockets 0.300" (7.62mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | 16A | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
