Phoenix Contact
| Part Number | 1727175 | Manufacturer | Phoenix Contact |
|---|---|---|---|

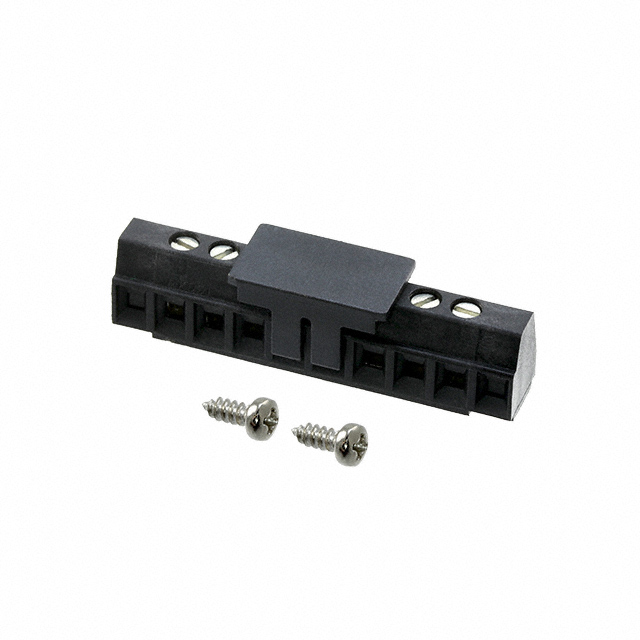

| Description | CONN TERM BLOCK 8POS 3.81MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18001 pcs | Data sheet | 1.1727175.pdf2.1727175.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 16-30 AWG |
| Voltage | 300V | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Series | COMBICON MKDS | Screw Thread | M2 |
| Screw Material - Plating | - | Positions Per Level | 8 |
| Pitch | 0.150" (3.81mm) | Packaging | Tube |
| Other Names | 1727175-ND 277-13808 MKDS 1/ 8-3,81 SMD BK MKDS1/8-3,81SMDBK |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Features | Board Lock |
| Detailed Description | 8 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Surface Mount | Current | 13.5A |
| Contact Material - Plating | - | Color | Black |
| Clamp Material - Plating | - |
