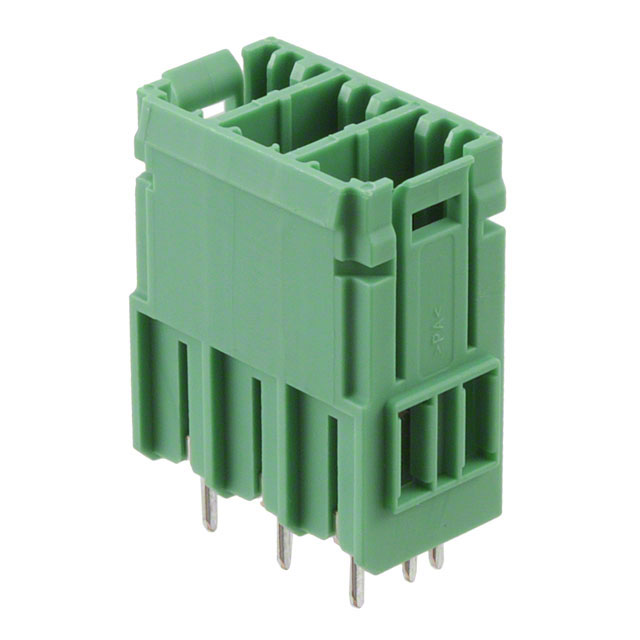

Phoenix Contact
| Part Number | 1720589 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24462 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 1kV | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON PCV | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1720589-ND 277-6556 PCV 5/ 3-G-7,62 PCV5/3-G-7,62 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.152" (29.25mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | Latch Lock |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole | Current - UL | 41A |
| Current - IEC | 41A | Contact Tail Length | 0.197" (5.00mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
