Phoenix Contact
| Part Number | 1718261 | Manufacturer | Phoenix Contact |
|---|---|---|---|

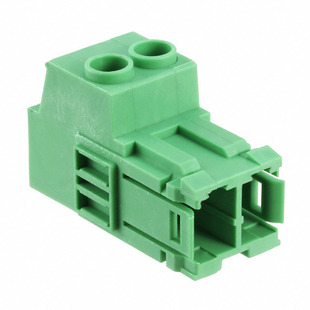

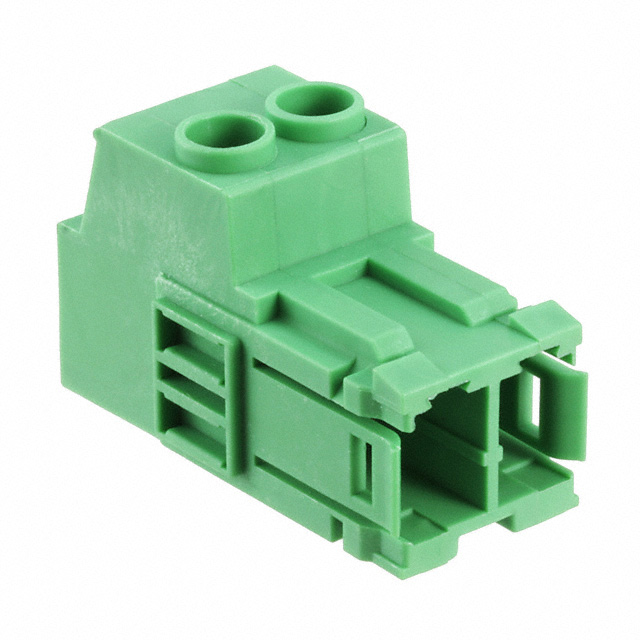

| Description | TERM BLOCK PLUG 2POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18440 pcs | Data sheet | 1718261.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-10mm² |
| Wire Gauge or Range - AWG | 8-24 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Male Pins |
| Torque - Screw | 0.7-0.8 Nm (6.2-7.1 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON IPC | Screw Size | M3 |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1718261-ND 277-6596 IPC 5/ 2-STGCL-7,62 IPC5/2-STGCL-7,62 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.902" (22.90mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Latch Lock |
| Detailed Description | 2 Position Terminal Block Plug, Male Pins 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 41A |
| Current - IEC | 41A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
