Phoenix Contact
| Part Number | 1718041 | Manufacturer | Phoenix Contact |
|---|---|---|---|

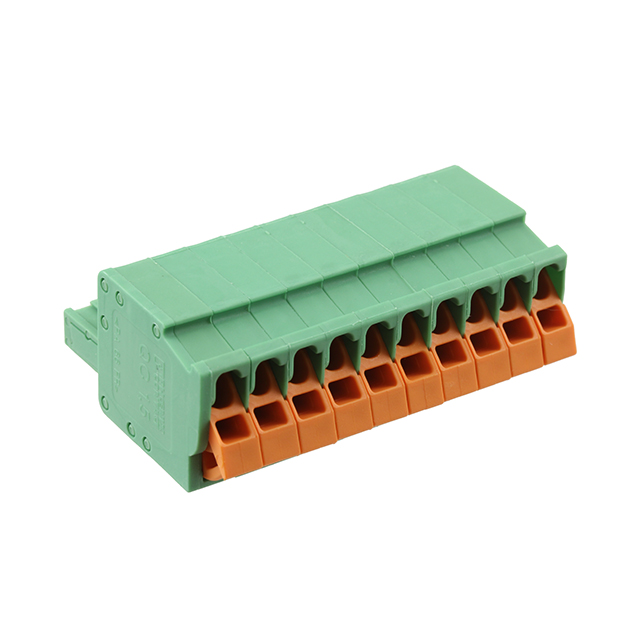

| Description | TERM BLOCK PLUG 10POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12345 pcs | Data sheet | 1718041.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-24 AWG | Voltage - UL | 300V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - IDC |
| Series | COMBICON QC | Screw Size | - |
| Positions Per Level | 10 | Plug Wire Entry | 180° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1718041-ND 277-12311 QC 1,5/10-ST QC1,5/10-ST |
Operating Temperature | - |
| Number of Positions | 10 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.772" (19.60mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
