Phoenix Contact

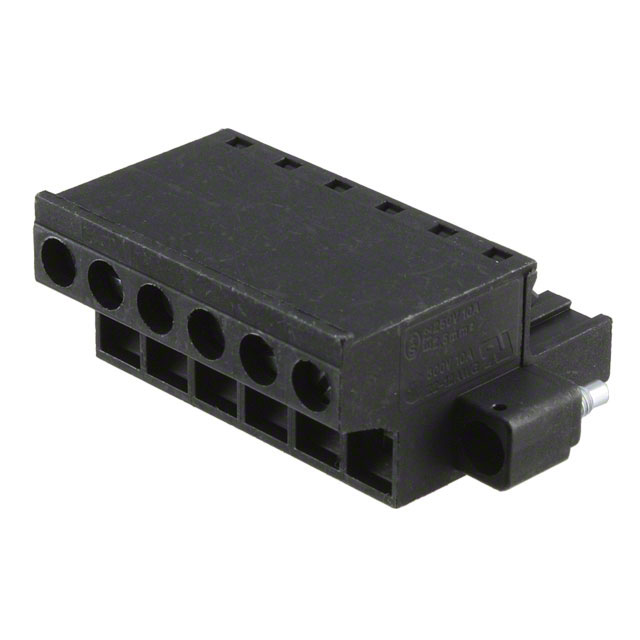

| Part Number | 1717149 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5841 pcs | Data sheet | 1717149.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - IEC | 250V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Pressure Clip | Series | COMBICON FRONT-MSTB |
| Screw Size | M2.5 | Positions Per Level | 6 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1717149-ND 277-8603 FRONT-MSTB 2,5/ 6-STF-5,08 BK FRONT-MSTB2,5/6-STF-5,08BK |
| Operating Temperature | - | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.083" (27.51mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
