Phoenix Contact

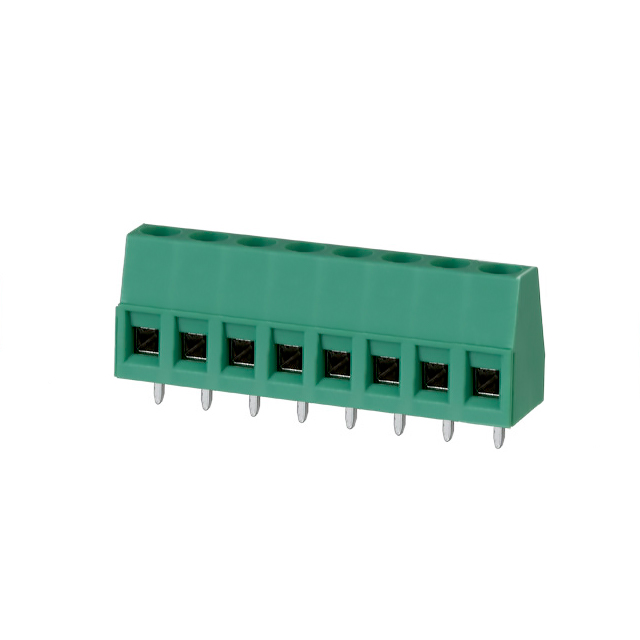

| Part Number | 1715080 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLOCK 8POS 5MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22000 pcs | Data sheet | 1715080.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 14-30 AWG |
| Voltage | 300V | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Series | COMBICON MKDS | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 8 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 277-1261 MKDS 1.5/8 MKDS1,5/8 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 8 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole | Current | 15A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
