Phoenix Contact
| Part Number | 1713082 | Manufacturer | Phoenix Contact |
|---|---|---|---|

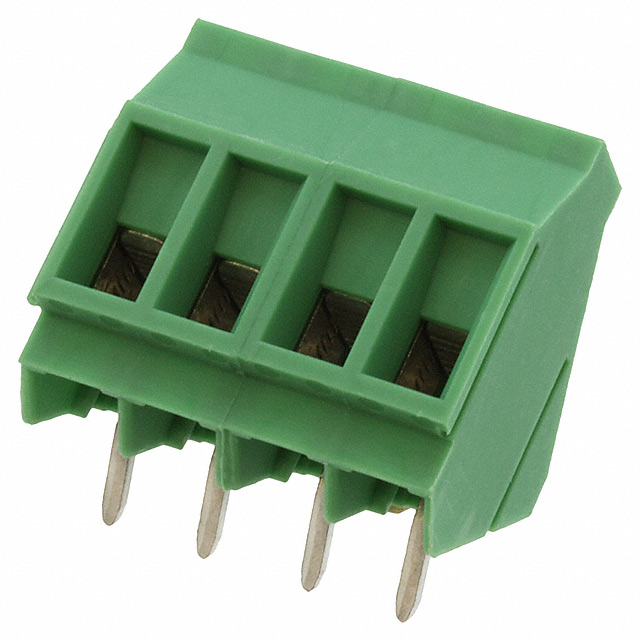

| Description | CONN TERM BLOCK 4POS 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19693 pcs | Data sheet | 1713082.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 12-30 AWG |
| Voltage | 300V | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Series | COMBICON SMKDS | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 4 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1713082-ND 277-8592 SMKDS 3/ 4 SMKDS3/4 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 35° (145°) Angle with Board |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 4 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole | Current | 15A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
