Phoenix Contact

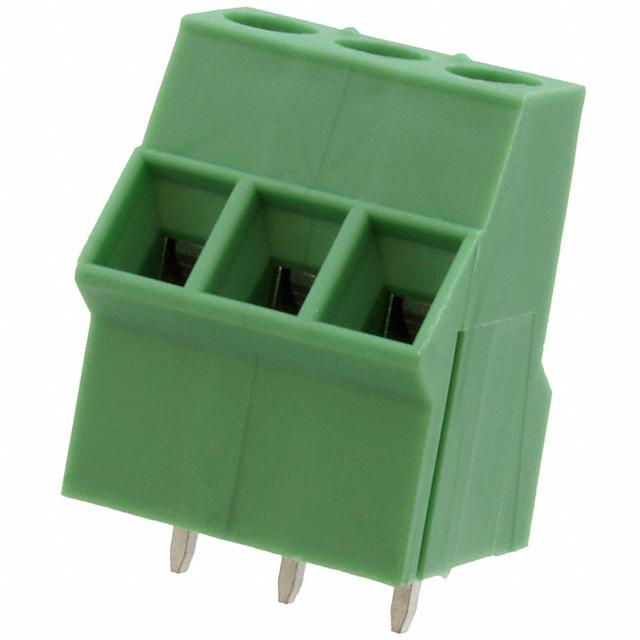

| Part Number | 1705472 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLOCK 3POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28734 pcs | Data sheet | 1705472.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 12-30 AWG |
| Voltage | 300V | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Series | COMBICON SMKDS | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 3 |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1705472-ND 277-5724 SMKDS 2,5/ 3-5,08 SMKDS2,5/3-5,08 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 40° (130°) Angle with Board |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 3 Position Wire to Board Terminal Block 40° (130°) Angle with Board 0.200" (5.08mm) Through Hole | Current | 10A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
