Phoenix Contact
| Part Number | 1700781 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8943 pcs | Data sheet | 1.1700781.pdf2.1700781.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 12-30 AWG |
| Voltage | 300V | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Series | COMBICON FRONT | Screw Thread | M2.5 |
| Screw Material - Plating | - | Positions Per Level | 4 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1700781-ND 277-13702 FRONT 2 5-H/SA 5/ 4 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |

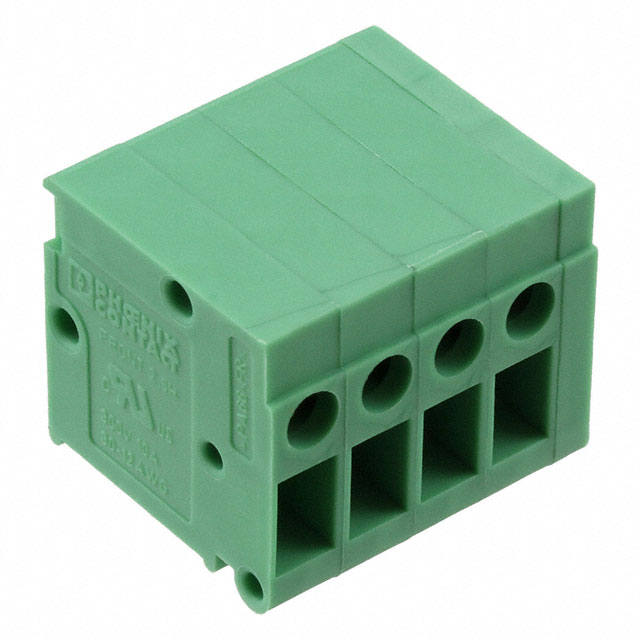

| Detailed Description | 4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole | Current | 20A |
| Contact Material - Plating | Tin Plated | Color | Green |
| Clamp Material - Plating | - |
