Phoenix Contact
| Part Number | 1681172 | Manufacturer | Phoenix Contact |
|---|---|---|---|

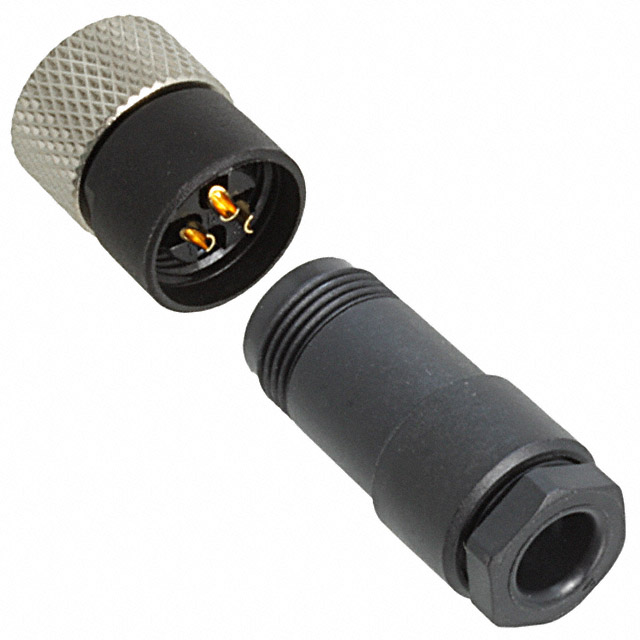

| Description | CONN RCPT FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7119 pcs | Data sheet | 1681172.pdf |
| Voltage Rating | 48VAC, 60VDC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | M8-3 | Shell Material | Brass |
| Shell Finish | Nickel | Series | SACC |
| Packaging | Bulk | Other Names | 1681172-ND 277-4338 SACC-M 8FS-3CON-M SACC-M8FS-3CON-M |
| Orientation | A | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 HB | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA), Nylon |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 4A | Contact Material | Copper Zinc |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black, Silver |
| Cable Opening | 0.138" ~ 0.197" (3.50mm ~ 5.00mm) | Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Applications | - |
