Phoenix Contact
| Part Number | 1657915 | Manufacturer | Phoenix Contact |
|---|---|---|---|

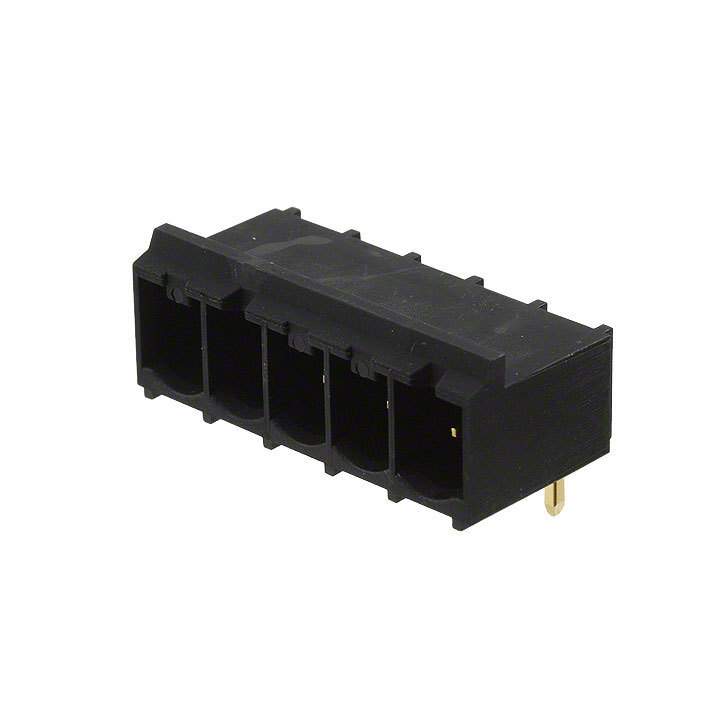

| Description | TERM BLOCK HDR 5POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34678 pcs | Data sheet | 1657915.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 24V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | PLUSCON VS |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1657915-ND 277-8510 VS-MSTBAH 2,5/ 5-GB-5,08-BK-A VS-MSTBAH2,5/5-GB-5,08-BK-A |
| Operating Temperature | -40°C ~ 70°C | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.410" (10.41mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 16A | Current - IEC | 16A |
| Contact Tail Length | 0.169" (4.29mm) | Contact Mating Finish | Gold |
| Contact Material | Copper Alloy | Color | Black |
