Phoenix Contact
| Part Number | 1608074 | Manufacturer | Phoenix Contact |
|---|---|---|---|

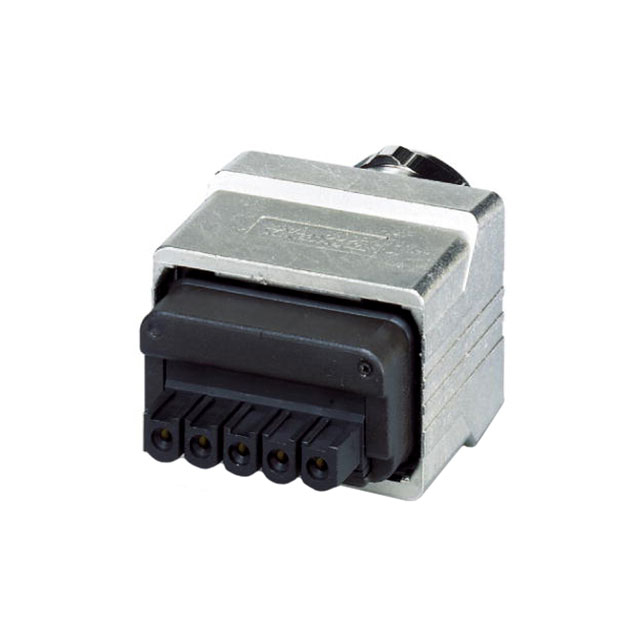

| Description | TERM BLOCK PLUG 5POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3093 pcs | Data sheet | 1608074.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.75-2.5mm² |
| Wire Gauge or Range - AWG | 14 AWG | Voltage - UL | 24V |
| Voltage - IEC | 24V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | PLUSCON VS | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 1608074-ND 277-10975 VS-PPC-C2-MSTB-MNNA-P13-A5-SP VSPPCC2MSTBMNNAP13A5SP |
Operating Temperature | -40°C ~ 70°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.181" (30.00mm) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Metal Housing | Detailed Description | 5 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line) |
| Current - UL | 16A | Current - IEC | 16A |
| Contact Tail Length | - | Contact Mating Finish | Gold |
| Contact Material | Copper Alloy | Color | - |
