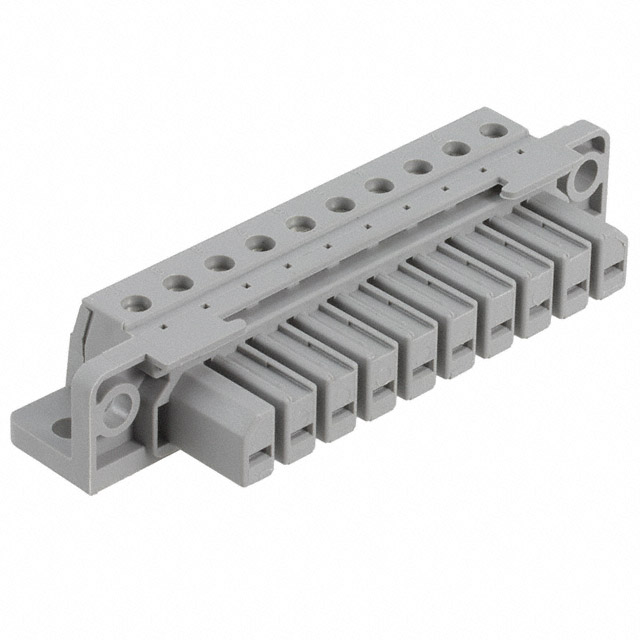

Phoenix Contact
| Part Number | 1600001 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 10POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2548 pcs | Data sheet | 1600001.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-4mm² |
| Wire Gauge or Range - AWG | 10-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 500V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON HCC | Screw Size | M3 |
| Positions Per Level | 10 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 1600001-ND 277-3804 HCC4-F |
Operating Temperature | - |
| Number of Positions | 10 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-2 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.709" (18.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 10 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line) |
| Current - UL | 20A | Current - IEC | 25A |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Gray |
