Phoenix Contact
| Part Number | 1543236 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN PLUG MALE 8POS GOLD IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2278 pcs | Data sheet | 1543236.pdf |
| Voltage Rating | 30VAC/DC | Termination | IDC |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | M12-8 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | SACC |
| Packaging | Bulk | Other Names | 1543236-ND 277-4259 SACC-M12MS-8Q SH SACC-M12MS-8QSH |
| Orientation | A | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell |

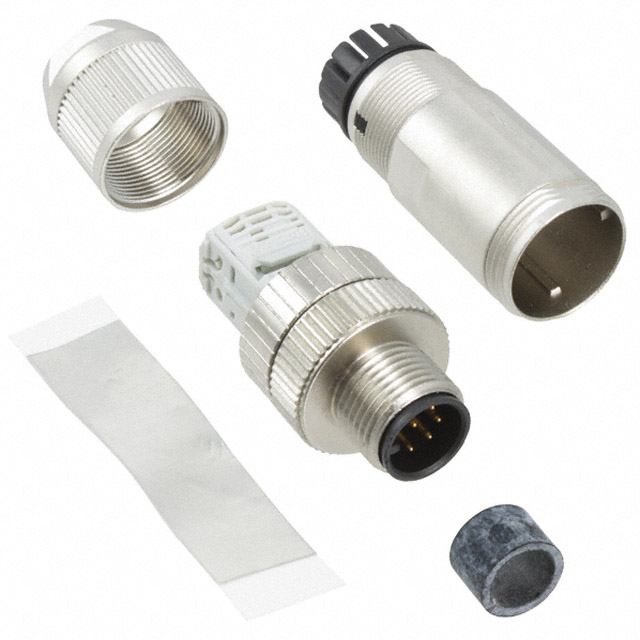

| Fastening Type | Threaded | Detailed Description | 8 Position Circular Connector Plug, Male Pins IDC Gold |
| Current Rating | 2A | Contact Material | Copper Tin |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Silver |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) | Backshell Material, Plating | Zinc Die Cast, Nickel |
| Applications | - |
