Phoenix Contact
| Part Number | 1521478 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN RCPT FMALE 3POS GOLD SCREW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2491 pcs | Data sheet | 1.1521478.pdf2.1521478.pdf |
| Voltage Rating | 300V | Termination | Screw |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 7/8"-3 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | SACC |
| Packaging | Bulk | Other Names | 1521478-ND 277-13368 SACC-MINFR-3CON-PG 9 SACC-MINFR-3CON-PG9 |
| Orientation | A | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 HB | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR) |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |

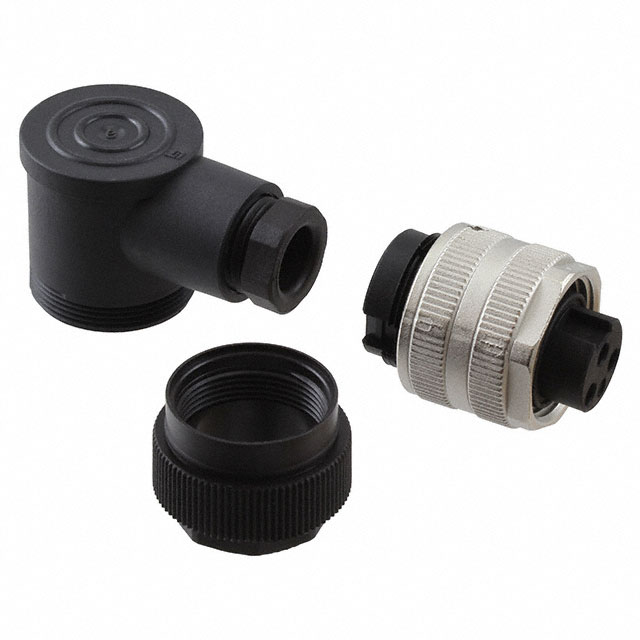

| Fastening Type | Threaded | Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Screw Gold |
| Current Rating | 12A | Contact Material | Copper Zinc |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black, Silver |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) | Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Applications | - |
