Phoenix Contact

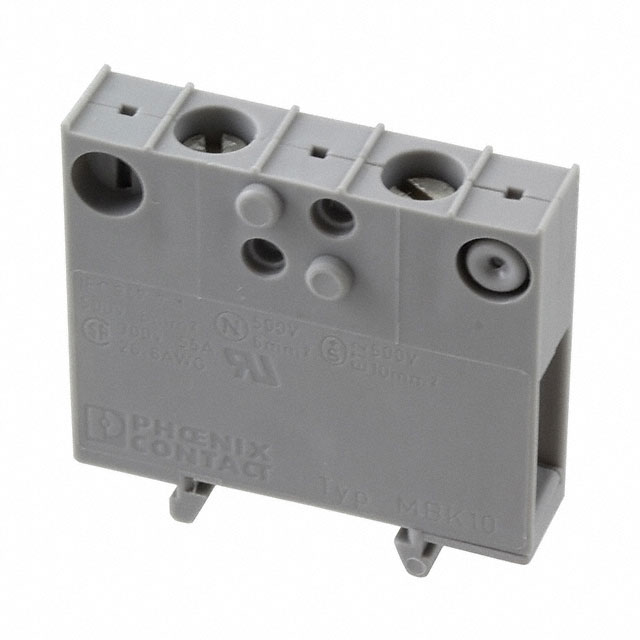

| Part Number | 1402018 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK 1POS 7.5MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19250 pcs | Data sheet | 1402018.pdf |
| Wire Gauge or Range - mm² | 0.5-10mm² | Wire Gauge or Range - AWG | 8-26 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | - | Termination Style | Screw |
| Terminal - Width | 7.5mm | Stripping Length | - |
| Series | CLIPLINE MBK | Other Names | 1402018-ND 277-12785 MBK10 |
| Operating Temperature | - | Number of Positions | 1 |
| Number of Levels | 2 | Mounting Type | DIN Rail |
| Material Flammability Rating | - | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Length | 1.299" (32.99mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Gray |
| Height (Max) | 1.280" (32.50mm) | Features | - |
| Detailed Description | 1 Position Terminal Block Gray 7.5mm | Current - UL | 50A |
| Current - IEC | 61A |
