PE42420D-Z

Peregrine Semiconductor

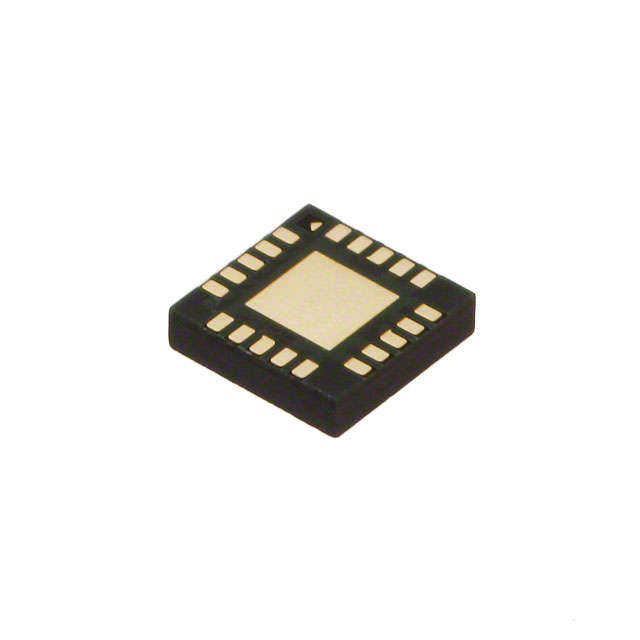

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE42420D-Z
Manufacturer/Brand:	Peregrine Semiconductor
Product description	IC RF SWITCH SPDT 20LGA
Datasheets:	PE42420D-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25434 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25434 pcs

Reference Price (In US Dollars)

1 pcs: $1.185

10 pcs: $1.057

25 pcs: $0.951

100 pcs: $0.866

250 pcs: $0.782

500 pcs: $0.702

1000 pcs: $0.592

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.185

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE42420D-Z

Part Number	PE42420D-Z	Manufacturer	Peregrine Semiconductor
Description	IC RF SWITCH SPDT 20LGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25434 pcs	Data sheet	PE42420D-Z.pdf
Voltage - Supply	3V	Topology	Absorptive
Test Frequency	6GHz	Supplier Device Package	20-LGA (4x4)
Series	UltraCMOS®	RF Type	-
Packaging	Cut Tape (CT)	Package / Case	20-TFLGA Exposed Pad
P1dB	-	Other Names	1046-1158-1
Operating Temperature	-40°C ~ 105°C	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Isolation	50dB	Insertion Loss	1.6dB
Impedance	50 Ohm	IIP3	65dBm
Frequency Range	100MHz ~ 6GHz	Features	-
Detailed Description	RF Switch IC SPDT 6GHz 50 Ohm 20-LGA (4x4)	Circuit	SPDT
