XN0643500L

Panasonic

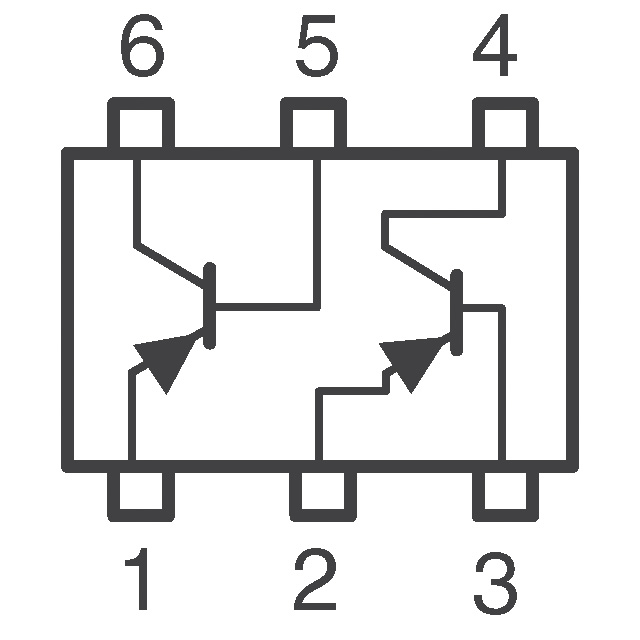

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XN0643500L
Manufacturer/Brand:	Panasonic
Product description	TRANS 2PNP 20V 0.03A MINI6
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4539 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4539 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XN0643500L

Part Number	XN0643500L	Manufacturer	Panasonic
Description	TRANS 2PNP 20V 0.03A MINI6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4539 pcs	Data sheet
Voltage - Collector Emitter Breakdown (Max)	20V	Vce Saturation (Max) @ Ib, Ic	100mV @ 1mA, 10mA
Transistor Type	2 PNP (Dual)	Supplier Device Package	MINI6-G1
Series	-	Power - Max	300mW
Packaging	Tape & Reel (TR)	Package / Case	SOT-23-6
Other Names	XN0643500LTR	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	150MHz
Detailed Description	Bipolar (BJT) Transistor Array 2 PNP (Dual) 20V 30mA 150MHz 300mW Surface Mount MINI6-G1	DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1mA, 10V
Current - Collector Cutoff (Max)	100µA	Current - Collector (Ic) (Max)	30mA
