XN0421000L

Panasonic

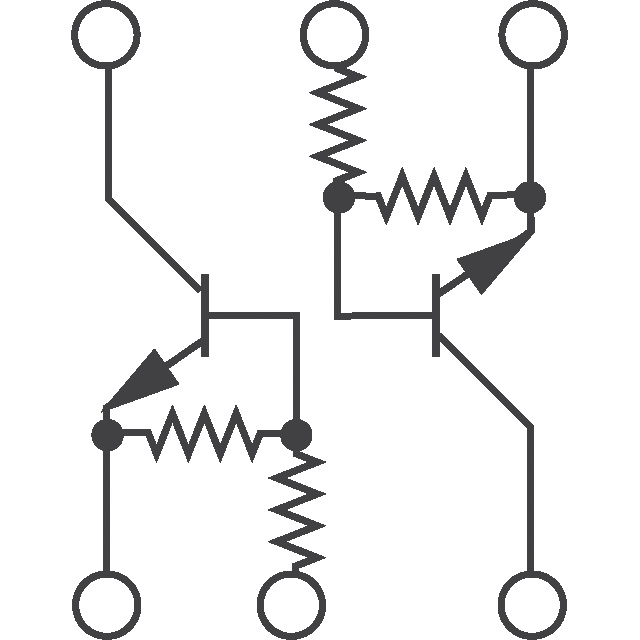

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XN0421000L
Manufacturer/Brand:	Panasonic
Product description	TRANS PREBIAS DUAL NPN MINI6
Datasheets:	XN0421000L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3195 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3195 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XN0421000L

Part Number	XN0421000L	Manufacturer	Panasonic
Description	TRANS PREBIAS DUAL NPN MINI6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3195 pcs	Data sheet	XN0421000L.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	250mV @ 300µA, 10mA
Transistor Type	2 NPN - Pre-Biased (Dual)	Supplier Device Package	MINI6-G1
Series	-	Resistor - Emitter Base (R2)	-
Resistor - Base (R1)	47 kOhms	Power - Max	300mW
Packaging	Tape & Reel (TR)	Package / Case	SOT-23-6
Other Names	XN0421000LTR XN4210-(TX) XN4210TR XN4210TR-ND	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	150MHz	Detailed Description	Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 150MHz 300mW Surface Mount MINI6-G1
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 5mA, 10V	Current - Collector Cutoff (Max)	500nA
Current - Collector (Ic) (Max)	100mA
