UNR421L00A

Panasonic

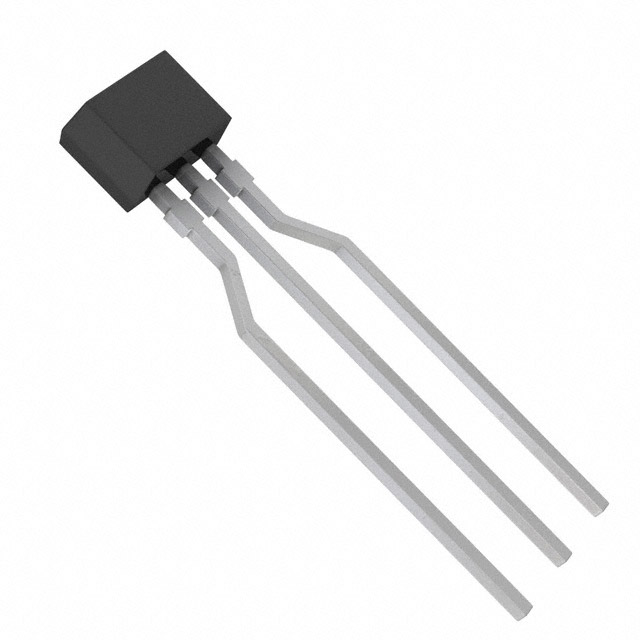

Image may be representation. See specifications for product details.

Product Overview

Part Number:	UNR421L00A
Manufacturer/Brand:	Panasonic
Product description	TRANS PREBIAS NPN 300MW NS-B1
Datasheets:	UNR421L00A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3778 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3778 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of UNR421L00A

Part Number	UNR421L00A	Manufacturer	Panasonic
Description	TRANS PREBIAS NPN 300MW NS-B1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3778 pcs	Data sheet	UNR421L00A.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	250mV @ 300µA, 10mA
Transistor Type	NPN - Pre-Biased	Supplier Device Package	NS-B1
Series	-	Resistor - Emitter Base (R2)	4.7 kOhms
Resistor - Base (R1)	4.7 kOhms	Power - Max	300mW
Packaging	Tape & Box (TB)	Package / Case	NS-B1
Other Names	UNR421L00ATB	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	150MHz	Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 150MHz 300mW Through Hole NS-B1
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 5mA, 10V	Current - Collector Cutoff (Max)	500nA
Current - Collector (Ic) (Max)	100mA
