TX2SA-3V-1-X

Panasonic

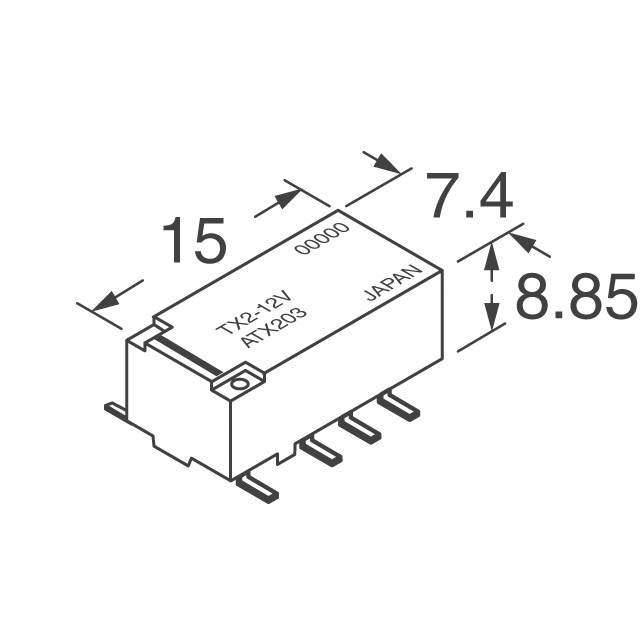

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX2SA-3V-1-X
Manufacturer/Brand:	Panasonic
Product description	RELAY TELECOM DPDT 1A 220V
Datasheets:	TX2SA-3V-1-X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30354 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 30354 pcs

Reference Price (In US Dollars)

40 pcs: $1.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.221

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX2SA-3V-1-X

Part Number	TX2SA-3V-1-X	Manufacturer	Panasonic
Description	RELAY TELECOM DPDT 1A 220V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30354 pcs	Data sheet	TX2SA-3V-1-X.pdf
Turn On Voltage (Max)	2.25 VDC	Turn Off Voltage (Min)	0.3 VDC
Termination Style	Gull Wing	Switching Voltage	220VDC - Max
Series	TX	Release Time	4ms
Relay Type	Telecom	Packaging	Tube
Operating Temperature	-40°C ~ 85°C	Operate Time	4ms
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Detailed Description	Telecom Relay DPDT (2 Form C) Surface Mount
Contact Rating (Current)	1A	Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Form	DPDT (2 Form C)	Coil Voltage	3VDC
Coil Type	Non Latching	Coil Resistance	64.3 Ohms
Coil Power	140 mW	Coil Current	46.7mA
