TQ2-L2-3V

Panasonic

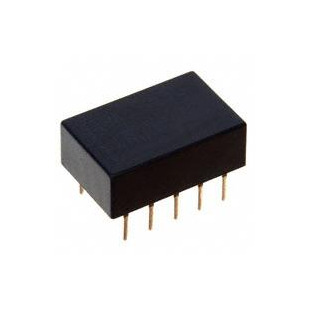

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TQ2-L2-3V
Manufacturer/Brand:	Panasonic
Product description	RELAY TELECOM DPDT 1A 125V
Datasheets:	TQ2-L2-3V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23739 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23739 pcs

Reference Price (In US Dollars)

1 pcs: $1.535

10 pcs: $1.439

25 pcs: $1.279

50 pcs: $1.215

100 pcs: $1.151

250 pcs: $1.023

500 pcs: $0.959

1000 pcs: $0.895

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.535

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TQ2-L2-3V

Part Number	TQ2-L2-3V	Manufacturer	Panasonic
Description	RELAY TELECOM DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23739 pcs	Data sheet	TQ2-L2-3V.pdf
Turn On Voltage (Max)	2.25 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	125VAC, 110VDC - Max
Series	TQ	Release Time	3ms
Relay Type	Telecom	Packaging	Tube
Other Names	255-1767 255-1767-5 255-1767-ND TQ2L23V	Operating Temperature	-40°C ~ 70°C
Operate Time	3ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	Telecom Relay DPDT (2 Form C) Through Hole	Contact Rating (Current)	1A
Contact Material	Silver (Ag), Gold (Au)	Contact Form	DPDT (2 Form C)
Coil Voltage	3VDC	Coil Type	Latching, Dual Coil
Coil Resistance	45 Ohms	Coil Power	200 mW
Coil Current	66.7mA
