ST2-DC24V-F

Panasonic

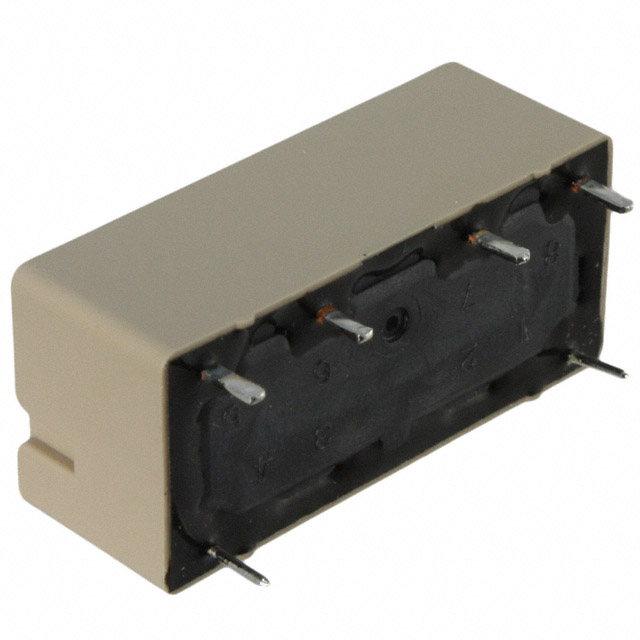

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ST2-DC24V-F
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 8A 24V
Datasheets:	ST2-DC24V-F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7179 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7179 pcs

Reference Price (In US Dollars)

1 pcs: $4.429

10 pcs: $3.938

25 pcs: $3.741

50 pcs: $3.544

100 pcs: $3.347

250 pcs: $3.052

500 pcs: $2.855

1000 pcs: $2.707

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.429

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ST2-DC24V-F

Part Number	ST2-DC24V-F	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 8A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7179 pcs	Data sheet	ST2-DC24V-F.pdf
Turn On Voltage (Max)	19.2 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	380VAC, 250VDC - Max
Series	ST	Release Time	10ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-2941 ST2-DC24V-F-ND ST2DC24VF	Operating Temperature	-40°C ~ 60°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Detailed Description	General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole	Contact Rating (Current)	8A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	DPST-NO (2 Form A)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	2.4 kOhms	Coil Power	240 mW
Coil Current	10.0mA
