SP4-PL2-DC5V

Panasonic

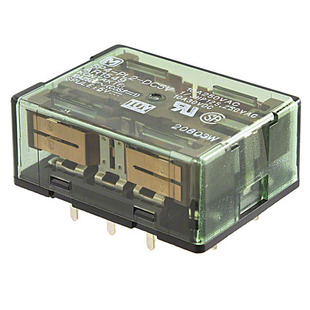

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP4-PL2-DC5V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE 4PDT 10A 5V
Datasheets:	SP4-PL2-DC5V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2732 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2732 pcs

Reference Price (In US Dollars)

1 pcs: $12.448

10 pcs: $11.826

25 pcs: $11.203

50 pcs: $10.581

100 pcs: $9.959

250 pcs: $9.336

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.448

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP4-PL2-DC5V

Part Number	SP4-PL2-DC5V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE 4PDT 10A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2732 pcs	Data sheet	SP4-PL2-DC5V.pdf
Turn On Voltage (Max)	3.5 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	250VAC, 30VDC - Max
Series	SP	Release Time	30ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-3459 SP4-PL2-DC5V-ND SP4PL2DC5V	Operating Temperature	-50°C ~ 60°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose Relay 4PDT (4 Form C) 5VDC Coil Through Hole	Contact Rating (Current)	10A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	4PDT (4 Form C)
Coil Voltage	5VDC	Coil Type	Latching, Dual Coil
Coil Resistance	83 Ohms	Coil Power	300 mW
Coil Current	60.2mA
