SP2-PL2-DC3V

Panasonic

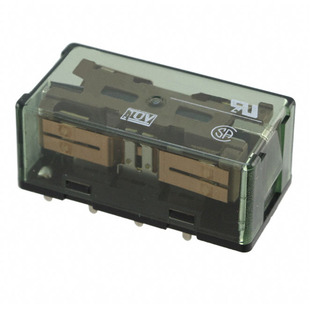

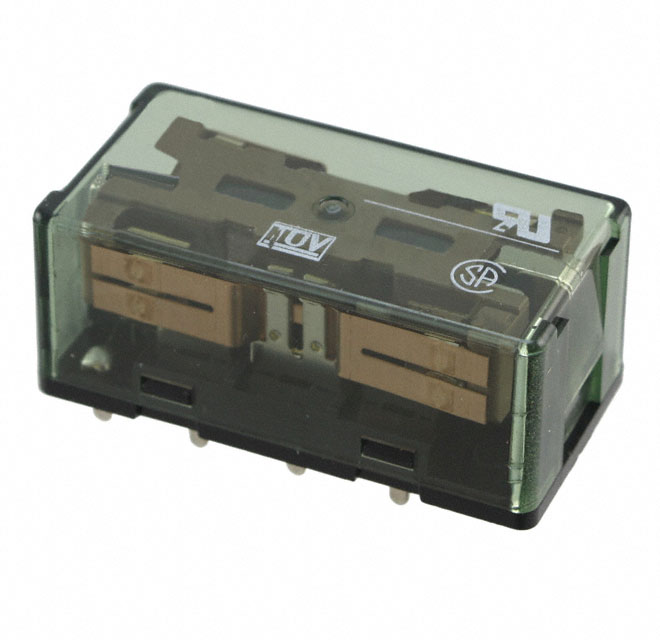

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP2-PL2-DC3V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPDT 15A 3V
Datasheets:	SP2-PL2-DC3V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3554 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3554 pcs

Reference Price (In US Dollars)

1 pcs: $8.41

10 pcs: $7.989

25 pcs: $7.569

50 pcs: $7.148

100 pcs: $6.728

250 pcs: $6.307

500 pcs: $5.887

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$8.41

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP2-PL2-DC3V

Part Number	SP2-PL2-DC3V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPDT 15A 3V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3554 pcs	Data sheet	SP2-PL2-DC3V.pdf
Turn On Voltage (Max)	2.1 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	250VAC, 30VDC - Max
Series	SP	Release Time	30ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-6224 SP2-PL2-DC3V-ND	Operating Temperature	-50°C ~ 60°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose Relay DPDT (2 Form C) 3VDC Coil Through Hole	Contact Rating (Current)	15A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	DPDT (2 Form C)
Coil Voltage	3VDC	Coil Type	Latching, Dual Coil
Coil Resistance	30 Ohms	Coil Power	300 mW
Coil Current	100mA
