PNA1605F

PanasonicPanasonic

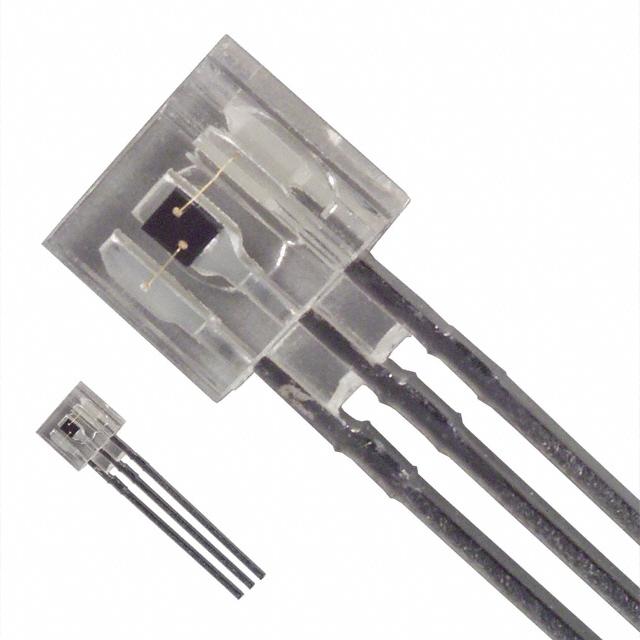

PNA1605F Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PNA1605F
Manufacturer/Brand: Panasonic
Product description NPN PHOTO TRANSISTOR
Datasheets: PNA1605F.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3654 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 3654 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PNA1605F

Part Number PNA1605F Manufacturer Panasonic
Description NPN PHOTO TRANSISTOR Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3654 pcs Data sheet PNA1605F.pdf
Wavelength 900nm Voltage - Collector Emitter Breakdown (Max) 20V
Viewing Angle 140° Series *
Power - Max 100mW Packaging -
Package / Case Radial Other Names PN116
PN116PA
PN116PA-ND
Orientation Side View Operating Temperature -
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description Phototransistor 900nm Side View Radial
Current - Dark (Id) (Max) 2µA Current - Collector (Ic) (Max) 20mA
