NC2D-DC12V

Panasonic

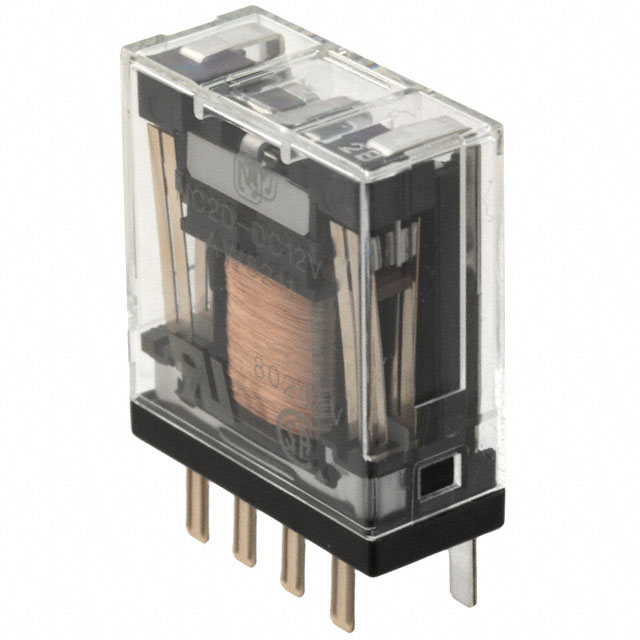

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NC2D-DC12V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPDT 5A 12V
Datasheets:	NC2D-DC12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7681 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7681 pcs

Reference Price (In US Dollars)

1 pcs: $4.461

20 pcs: $3.966

40 pcs: $3.768

60 pcs: $3.57

100 pcs: $3.371

260 pcs: $3.074

500 pcs: $2.876

1000 pcs: $2.727

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.461

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NC2D-DC12V

Part Number	NC2D-DC12V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPDT 5A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7681 pcs	Data sheet	NC2D-DC12V.pdf
Turn On Voltage (Max)	9.6 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	Plug In	Switching Voltage	250VAC - Max
Series	NC	Release Time	10ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-2824 NC2D-DC12V-ND NC2DDC12V	Operating Temperature	-40°C ~ 70°C
Operate Time	20ms	Mounting Type	Socketable
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable	Contact Rating (Current)	5A
Contact Material	Silver Nickel (AgNi)	Contact Form	DPDT (2 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	400 Ohms	Coil Power	360 mW
Coil Current	30.0mA
