Panasonic

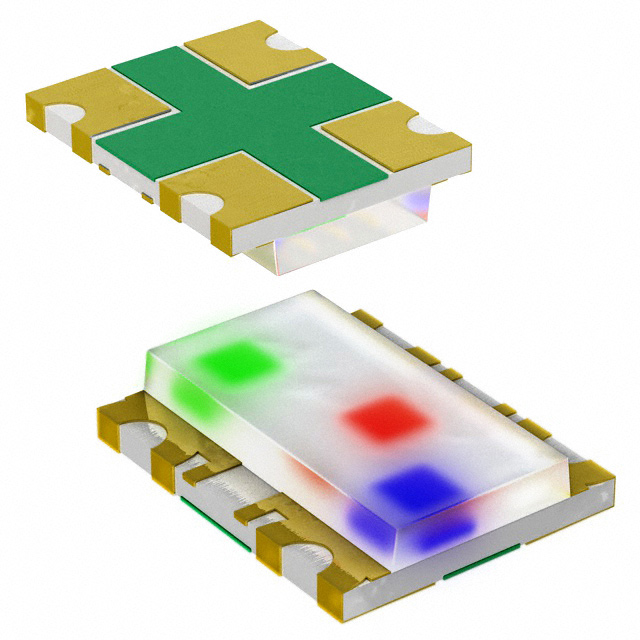

| Part Number | LNJ757W86RA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | LED RGB CHIP 628NM 525 470NM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 190965 pcs | Data sheet | LNJ757W86RA.pdf |
| Wavelength - Peak | 643nm Red, 520nm Green, 462nm Blue | Wavelength - Dominant | 628nm Red, 525nm Green, 470nm Blue |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V Green, 2.95V Blue | Viewing Angle | - |
| Supplier Device Package | Chip LED | Size / Dimension | 1.30mm L x 1.05mm W |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | P16825TR |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Millicandela Rating | 30mcd Red, 90mcd Green, 15mcd Blue | Lens Transparency | - |
| Lens Style/Size | Rectangle with Flat Top, 1.30mm x 0.70mm | Lens Color | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.35mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 628nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 2.95V Blue 4-SMD, No Lead |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) | Base Part Number | LNJ757 |
