Panasonic

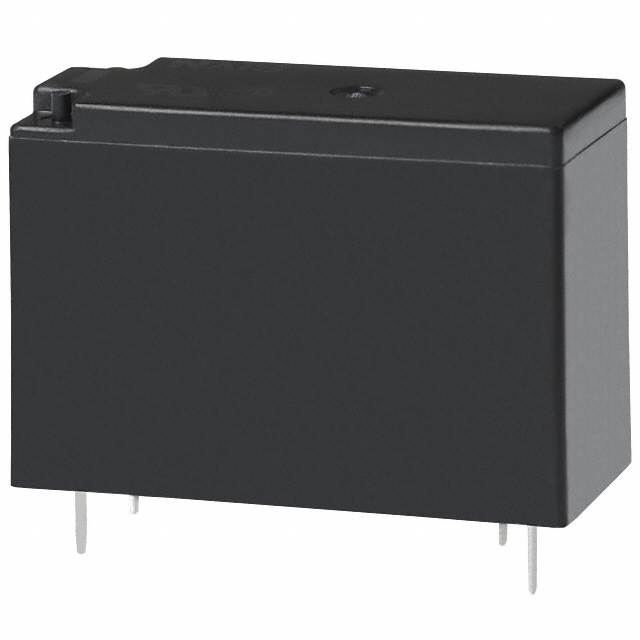

| Part Number | JW1AFSN-DC9V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4490 pcs | Data sheet | JW1AFSN-DC9V.pdf |
| Turn On Voltage (Max) | 6.3 VDC | Turn Off Voltage (Min) | 0.9 VDC |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 30VDC - Max |
| Series | JW | Release Time | 5ms |
| Relay Type | General Purpose | Packaging | Tray |
| Other Names | 255-3678 JW1AFSN-DC9V-ND JW1AFSNDC9V |
Operating Temperature | -40°C ~ 60°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Alloy | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 9VDC | Coil Type | Non Latching |
| Coil Resistance | 155 Ohms | Coil Power | 530 mW |
| Coil Current | 58.0mA |
