JTV1AS-PA-12V

Panasonic

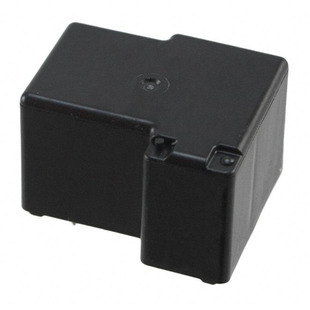

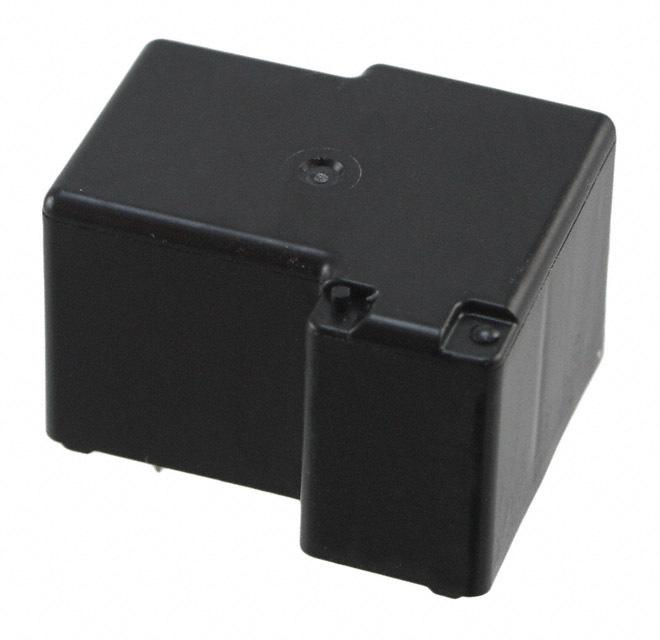

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JTV1AS-PA-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 30A 12V
Datasheets:	JTV1AS-PA-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22505 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22505 pcs

Reference Price (In US Dollars)

1 pcs: $1.467

10 pcs: $1.374

25 pcs: $1.221

50 pcs: $1.16

100 pcs: $1.099

250 pcs: $0.977

500 pcs: $0.916

1000 pcs: $0.855

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.467

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JTV1AS-PA-12V

Part Number	JTV1AS-PA-12V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 30A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22505 pcs	Data sheet	JTV1AS-PA-12V.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	277VAC - Max
Series	JT-V	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-2817 JTV1ASPA12V	Operating Temperature	-55°C ~ 85°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole	Contact Rating (Current)	30A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	144 Ohms	Coil Power	1 W
Coil Current	83.3mA
