JSM1F-12V-5

Panasonic

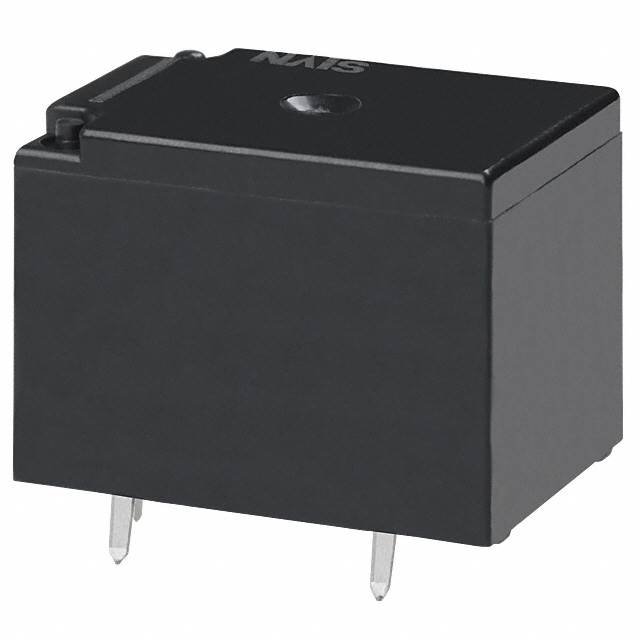

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JSM1F-12V-5
Manufacturer/Brand:	Panasonic
Product description	JS-M RELAY 12V DC COIL HIGH CAPA
Datasheets:	JSM1F-12V-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14962 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14962 pcs

Reference Price (In US Dollars)

1 pcs: $2.341

10 pcs: $2.195

25 pcs: $1.951

50 pcs: $1.853

100 pcs: $1.756

250 pcs: $1.561

500 pcs: $1.463

1000 pcs: $1.365

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.341

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JSM1F-12V-5

Part Number	JSM1F-12V-5	Manufacturer	Panasonic
Description	JS-M RELAY 12V DC COIL HIGH CAPA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14962 pcs	Data sheet	JSM1F-12V-5.pdf
Turn On Voltage (Max)	6.3 VDC	Turn Off Voltage (Min)	0.9 VDC
Termination Style	PC Pin	Switching Voltage	16VDC - Max
Series	JS-M	Release Time	10ms
Packaging	Bulk	Other Names	255-6192 JSM1F-12V-5-ND
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Flux Protection	Contact Rating (Current)	15A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	225 Ohms	Coil Power	640 mW
Coil Current	53.3mA
