HEV2AN-P-DC15V

Panasonic

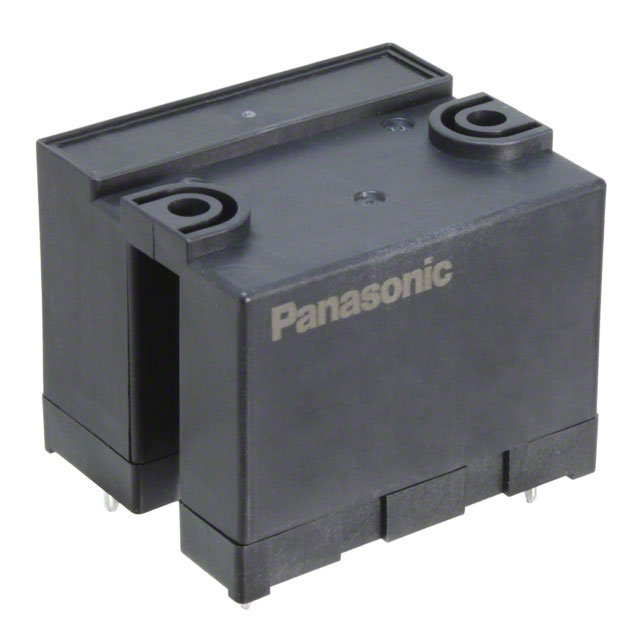

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HEV2AN-P-DC15V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 20A 15V
Datasheets:	1.HEV2AN-P-DC15V.pdf 2.HEV2AN-P-DC15V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1282 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1282 pcs

Reference Price (In US Dollars)

50 pcs: $29.894

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$29.894

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HEV2AN-P-DC15V

Part Number	HEV2AN-P-DC15V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 20A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1282 pcs	Data sheet	1.HEV2AN-P-DC15V.pdf 2.HEV2AN-P-DC15V.pdf
Turn On Voltage (Max)	10.5 VDC	Turn Off Voltage (Min)	0.75 VDC
Termination Style	PC Pin	Switching Voltage	400VDC - Nom
Series	HE-V	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Operating Temperature	-40°C ~ 55°C	Operate Time	30ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Flux Protection	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 15VDC Coil Through Hole
Contact Rating (Current)	20A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPST-NO (2 Form A)	Coil Voltage	15VDC
Coil Type	Non Latching	Coil Resistance	117 Ohms
Coil Power	1.92 W	Coil Current	128mA
