Panasonic

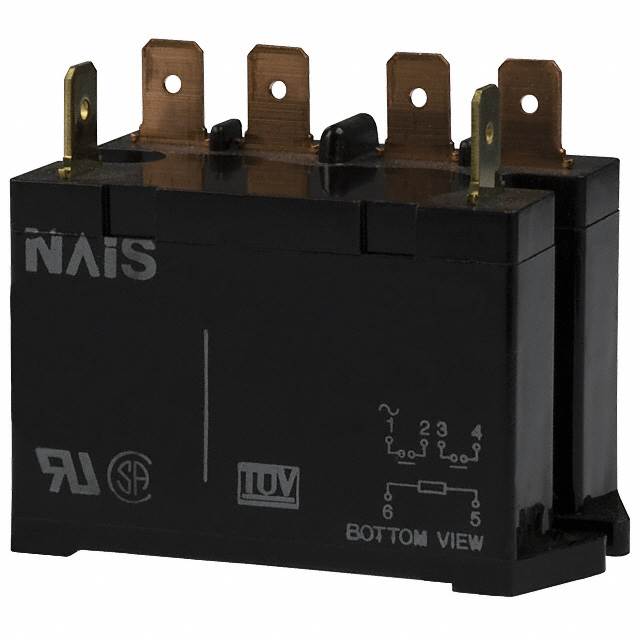

| Part Number | HE2AN-Q-AC120V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPST 25A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3776 pcs | Data sheet | HE2AN-Q-AC120V.pdf |
| Turn On Voltage (Max) | 84 VAC | Turn Off Voltage (Min) | 18 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Switching Voltage | 277VAC, 30VDC - Max |
| Series | HE | Release Time | 30ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 255-1662 255-1662-ND 255-2781 HE2ANQAC120V |
Operating Temperature | -50°C ~ 55°C |
| Operate Time | 30ms | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount | Contact Rating (Current) | 25A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | DPST-NO (2 Form A) |
| Coil Voltage | 120VAC | Coil Type | Non Latching |
| Coil Power | 2.7 VA | Coil Current | 22.1mA |
