FK8V03060L

Panasonic

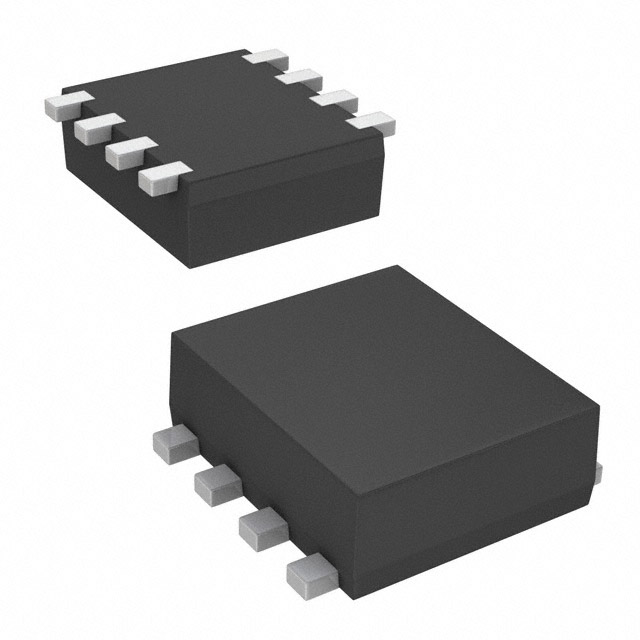

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FK8V03060L
Manufacturer/Brand:	Panasonic
Product description	MOSFET N CH 33V 6.5A WMINI8
Datasheets:	FK8V03060L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	363185 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 363185 pcs

Reference Price (In US Dollars)

3000 pcs: $0.092

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.092

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FK8V03060L

Part Number	FK8V03060L	Manufacturer	Panasonic
Description	MOSFET N CH 33V 6.5A WMINI8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	363185 pcs	Data sheet	FK8V03060L.pdf
Vgs(th) (Max) @ Id	2.5V @ 0.48mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	WMini8-F1
Series	-	Rds On (Max) @ Id, Vgs	20 mOhm @ 3.3A, 10V
Power Dissipation (Max)	1W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	8-SMD, Flat Lead	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	3.8nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	33V
Detailed Description	N-Channel 33V 6.5A (Ta) 1W (Ta) Surface Mount WMini8-F1	Current - Continuous Drain (Id) @ 25°C	6.5A (Ta)
