EZA-ST23AAAJ

Panasonic

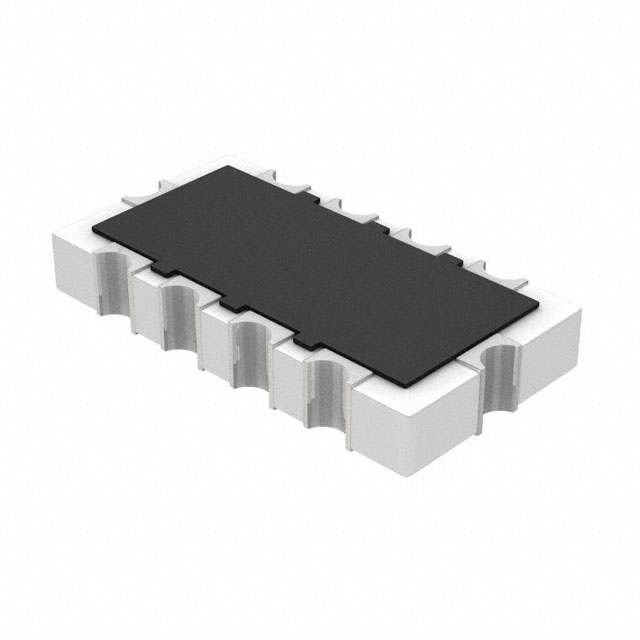

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EZA-ST23AAAJ
Manufacturer/Brand:	Panasonic
Product description	FILTER RC(PI) 47 OHM/100PF SMD
Datasheets:	EZA-ST23AAAJ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6501 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6501 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EZA-ST23AAAJ

Part Number	EZA-ST23AAAJ	Manufacturer	Panasonic
Description	FILTER RC(PI) 47 OHM/100PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6501 pcs	Data sheet	EZA-ST23AAAJ.pdf
Voltage - Rated	25V	Values	R = 47 Ohms, C = 100pF
Type	Low Pass	Technology	RC (Pi)
Size / Dimension	0.157" L x 0.083" W (4.00mm x 2.10mm)	Series	EZAST
Resistance - Channel (Ohms)	47	Packaging	Cut Tape (CT)
Package / Case	1608 (4021 Metric), Concave	Other Names	PST23CT
Operating Temperature	-25°C ~ 85°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	0.033" (0.85mm)
Filter Order	4th	ESD Protection	No
Detailed Description	RC (Pi) EMI Filter 4th Order Low Pass 4 Channel R = 47 Ohms, C = 100pF 1608 (4021 Metric), Concave	Center / Cutoff Frequency	-
Attenuation Value	-	Applications	Data Lines for Mobile Devices
