EYG-S0506ZLMM

Panasonic

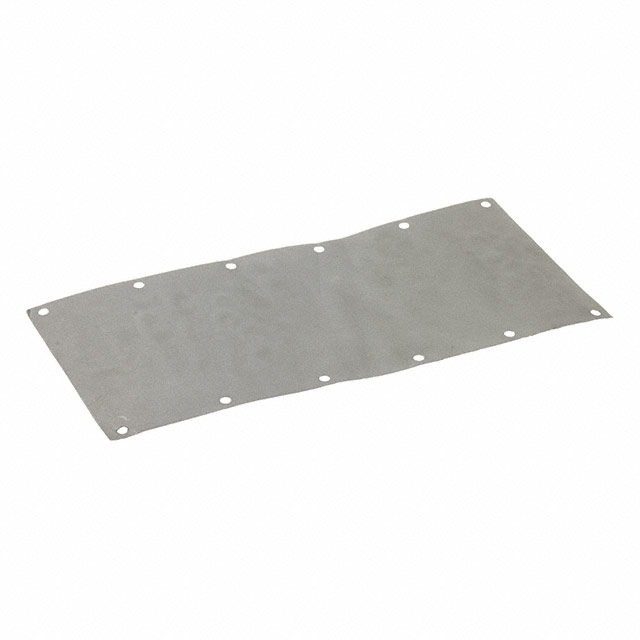

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EYG-S0506ZLMM
Manufacturer/Brand:	Panasonic
Product description	THERM PAD 55MMX48MM GRAY
Datasheets:	1.EYG-S0506ZLMM.pdf 2.EYG-S0506ZLMM.pdf 3.EYG-S0506ZLMM.pdf 4.EYG-S0506ZLMM.pdf 5.EYG-S0506ZLMM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15848 pcs

Reference Price (In US Dollars)

1 pcs: $2.008

10 pcs: $1.957

25 pcs: $1.904

50 pcs: $1.799

100 pcs: $1.693

250 pcs: $1.587

500 pcs: $1.534

1000 pcs: $1.375

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.008

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EYG-S0506ZLMM

Part Number	EYG-S0506ZLMM	Manufacturer	Panasonic
Description	THERM PAD 55MMX48MM GRAY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15848 pcs	Data sheet	1.EYG-S0506ZLMM.pdf 2.EYG-S0506ZLMM.pdf 3.EYG-S0506ZLMM.pdf 4.EYG-S0506ZLMM.pdf 5.EYG-S0506ZLMM.pdf
Usage	IGBT - Heat Transfer Low Thermal Resistance	Type	Graphite-Pad, Sheet
Thickness	0.0079" (0.200mm)	Thermal Resistivity	-
Thermal Conductivity	20 W/m-K	Shape	Rectangular
Series	Soft-PGS	Outline	55.00mm x 48.00mm
Other Names	EYGS0506ZLMM P122016	Moisture Sensitivity Level (MSL)	Not Applicable
Material	Graphite	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Thermal Pad Gray 55.00mm x 48.00mm Rectangular
Color	Gray	Backing, Carrier	-
Adhesive	-
