EXB-E10C563J

Panasonic

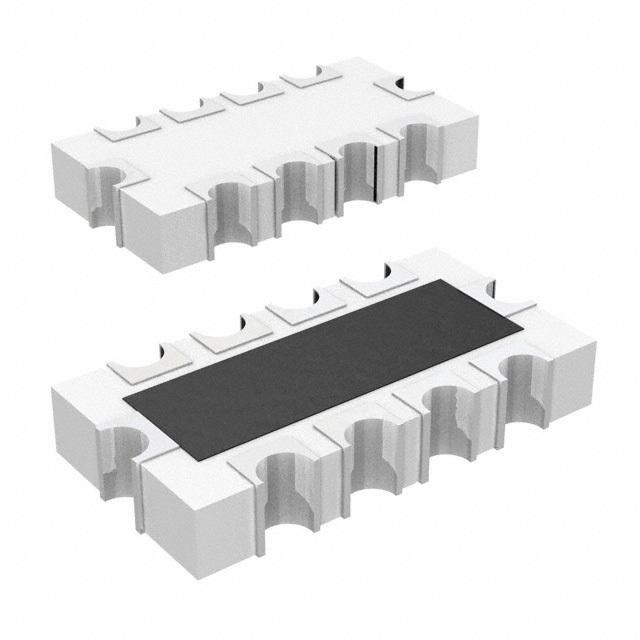

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EXB-E10C563J
Manufacturer/Brand:	Panasonic
Product description	RES ARRAY 8 RES 56K OHM 1608
Datasheets:	EXB-E10C563J.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	148000 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 148000 pcs

Reference Price (In US Dollars)

1 pcs: $0.217

10 pcs: $0.16

25 pcs: $0.13

50 pcs: $0.113

100 pcs: $0.093

250 pcs: $0.081

500 pcs: $0.066

1000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.217

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EXB-E10C563J

Part Number	EXB-E10C563J	Manufacturer	Panasonic
Description	RES ARRAY 8 RES 56K OHM 1608	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	148000 pcs	Data sheet	EXB-E10C563J.pdf
Tolerance	±5%	Temperature Coefficient	±200ppm/°C
Supplier Device Package	1608	Size / Dimension	0.157" L x 0.083" W (4.00mm x 2.10mm)
Series	EXB	Resistor-Ratio-Drift	-
Resistor Matching Ratio	-	Resistance (Ohms)	56k
Power Per Element	62.5mW	Packaging	Original-Reel®
Package / Case	1608, Concave, Long Side Terminals	Other Names	U8563DKR
Operating Temperature	-55°C ~ 125°C	Number of Resistors	8
Number of Pins	10	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Height - Seated (Max)	0.026" (0.65mm)
Detailed Description	56k Ohm ±5% 62.5mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 1608, Concave, Long Side Terminals	Circuit Type	Bussed
Applications	-
