EVQ-QWN01W

Panasonic

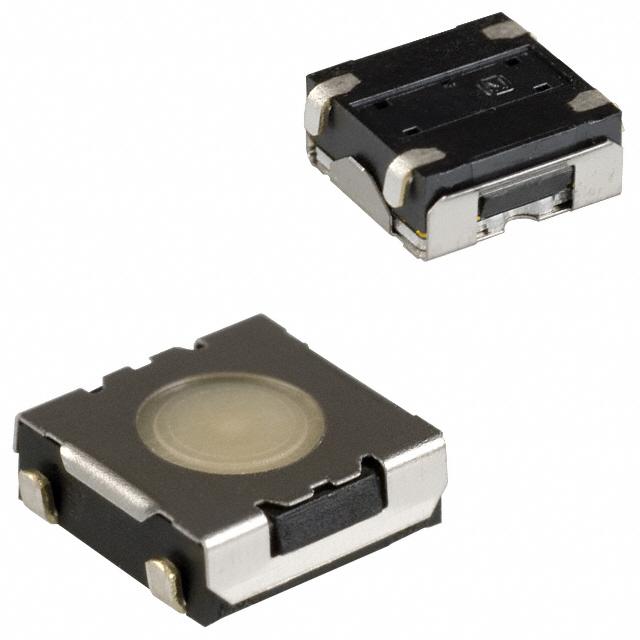

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVQ-QWN01W
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	EVQ-QWN01W.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	291694 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 291694 pcs

Reference Price (In US Dollars)

4000 pcs: $0.124

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.124

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVQ-QWN01W

Part Number	EVQ-QWN01W	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	291694 pcs	Data sheet	EVQ-QWN01W.pdf
Termination Style	J Lead	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	EVQQW
Packaging	Tape & Reel (TR)	Outline	6.20mm x 6.20mm
Other Names	EVQQWN01W P12262STR	Operating Temperature	-20°C ~ 70°C
Operating Force	160gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Grounding Pin
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.02A @ 15VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	2.00mm
