EVQ-PWBA15

Panasonic

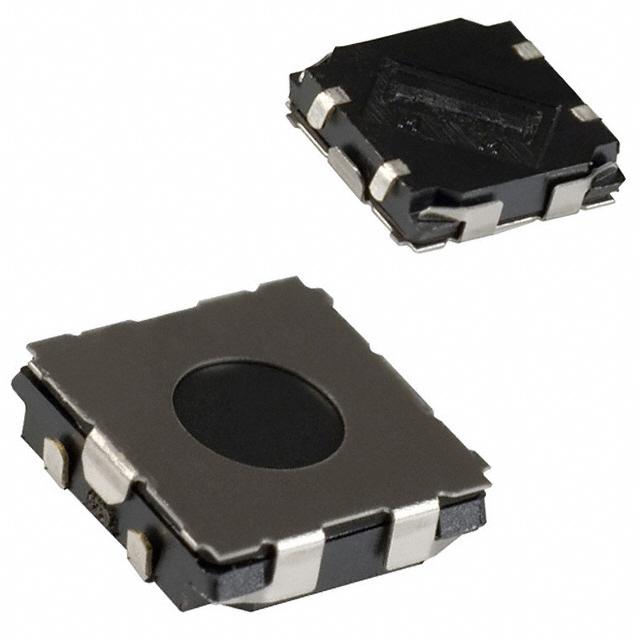

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVQ-PWBA15
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPDT 0.02A 15V
Datasheets:	EVQ-PWBA15.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	130522 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 130522 pcs

Reference Price (In US Dollars)

1 pcs: $0.235

10 pcs: $0.226

25 pcs: $0.222

50 pcs: $0.214

100 pcs: $0.184

250 pcs: $0.168

500 pcs: $0.159

1000 pcs: $0.126

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVQ-PWBA15

Part Number	EVQ-PWBA15	Manufacturer	Panasonic
Description	SWITCH TACTILE SPDT 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	130522 pcs	Data sheet	EVQ-PWBA15.pdf
Termination Style	J Lead	Switch Travel	0.50mm, 0.70mm
Switch Function	Off-Mom-Mom	Series	EVQPW
Packaging	Cut Tape (CT)	Outline	6.40mm x 6.20mm
Other Names	P10846SCT	Operating Temperature	-20°C ~ 70°C
Operating Force	100/260gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Dust Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPDT Top Actuated Surface Mount	Contact Rating @ Voltage	0.02A @ 15VDC
Circuit	SPDT	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	1.50mm
