EVQ-PBC05R

Panasonic

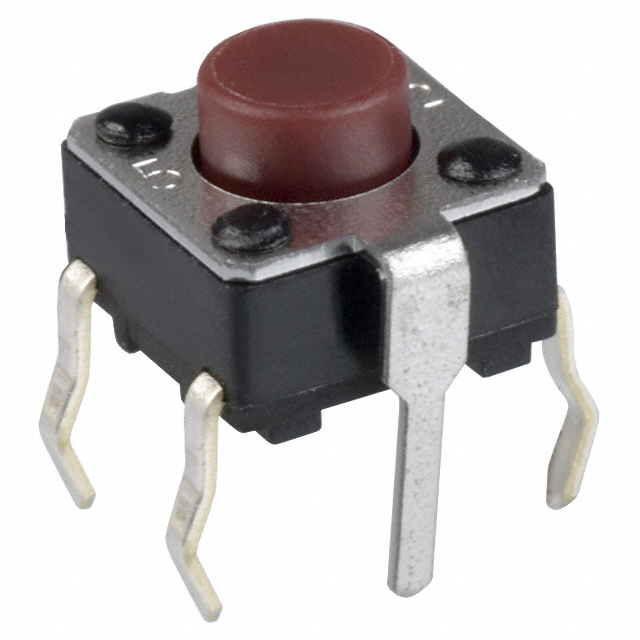

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVQ-PBC05R
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	EVQ-PBC05R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	455343 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 455343 pcs

Reference Price (In US Dollars)

1 pcs: $0.083

10 pcs: $0.079

25 pcs: $0.076

50 pcs: $0.073

100 pcs: $0.069

250 pcs: $0.065

500 pcs: $0.062

1000 pcs: $0.047

5000 pcs: $0.039

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.083

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVQ-PBC05R

Part Number	EVQ-PBC05R	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	455343 pcs	Data sheet	EVQ-PBC05R.pdf
Termination Style	PC Pin	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	EVQPB
Packaging	Bulk	Outline	6.00mm x 6.00mm
Other Names	EVQPBC05R P8014S	Operating Temperature	-20°C ~ 70°C
Operating Force	100gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Grounding Pin
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.02A @ 15VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	5.00mm
