EVQ-P9H02M

Panasonic

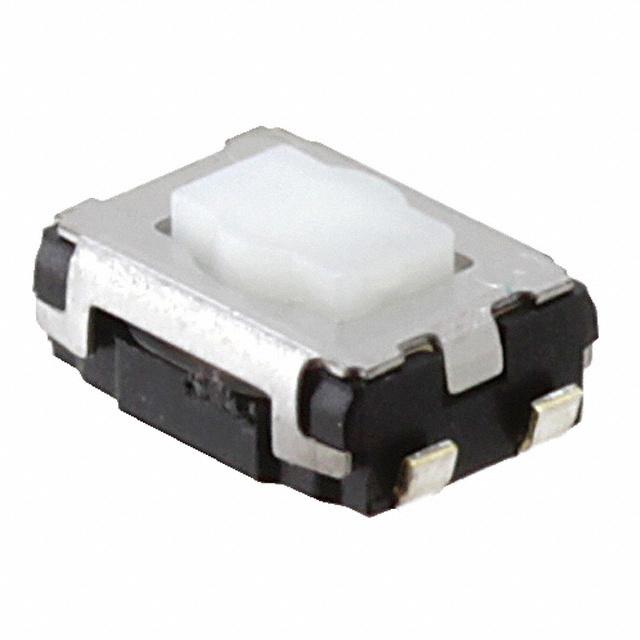

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVQ-P9H02M
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	EVQ-P9H02M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	250188 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 250188 pcs

Reference Price (In US Dollars)

4000 pcs: $0.157

8000 pcs: $0.146

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.157

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVQ-P9H02M

Part Number	EVQ-P9H02M	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	250188 pcs	Data sheet	EVQ-P9H02M.pdf
Termination Style	J Lead	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	EVQP9
Packaging	Tape & Reel (TR)	Outline	4.70mm x 3.50mm
Other Names	EVQP9H02M P15947STR	Operating Temperature	-40°C ~ 85°C
Operating Force	500gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Grounding Pin	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.02A @ 15VDC	Circuit	SPST-NO
Actuator Type	Rectangular Button	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	2.10mm
